Pedestrian Detection Systems A Comprehensive Overview

Pedestrian detection systems are crucial for various applications, from autonomous vehicles to smart cities. These systems use sophisticated technologies to identify and track pedestrians in diverse environments. Understanding the intricacies of these systems, from fundamental principles to real-world applications, is essential for comprehending their impact.

The design, data collection, model training, and evaluation procedures for pedestrian detection systems are complex and multifaceted. This overview explores these aspects, highlighting the key considerations, challenges, and future trends in this vital field.

Pedestrian Detection Systems

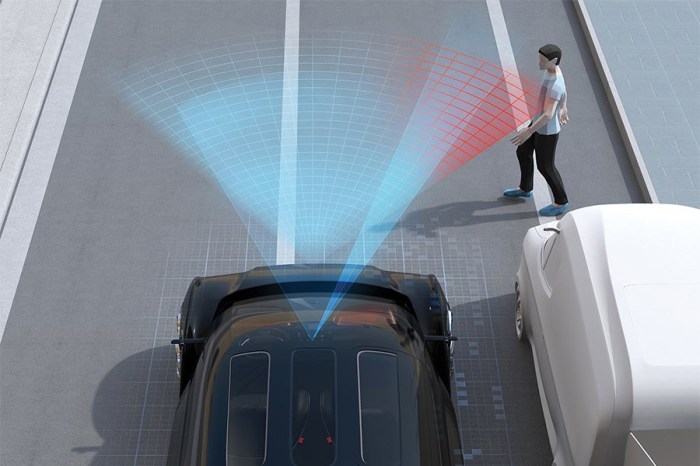

Pedestrian detection systems are crucial components of advanced driver-assistance systems (ADAS) and autonomous vehicles. These systems are designed to identify and track pedestrians in the environment, enabling vehicles to react appropriately and mitigate potential hazards. Accurate and timely pedestrian detection is paramount for ensuring safety on roads and improving overall traffic efficiency.

Fundamental Principles

Pedestrian detection systems rely on a combination of image processing, machine learning, and sensor fusion techniques. These systems analyze data from various sources to create a comprehensive understanding of the pedestrian’s presence, location, and movement. Crucially, these systems need to be robust enough to handle varying lighting conditions, weather patterns, and diverse pedestrian behavior.

Types of Pedestrian Detection Systems

Different types of sensors and technologies underpin pedestrian detection systems. Camera-based systems are prevalent due to their affordability and wide availability. Radar-based systems offer advantages in challenging weather conditions and provide a more precise understanding of depth and distance.

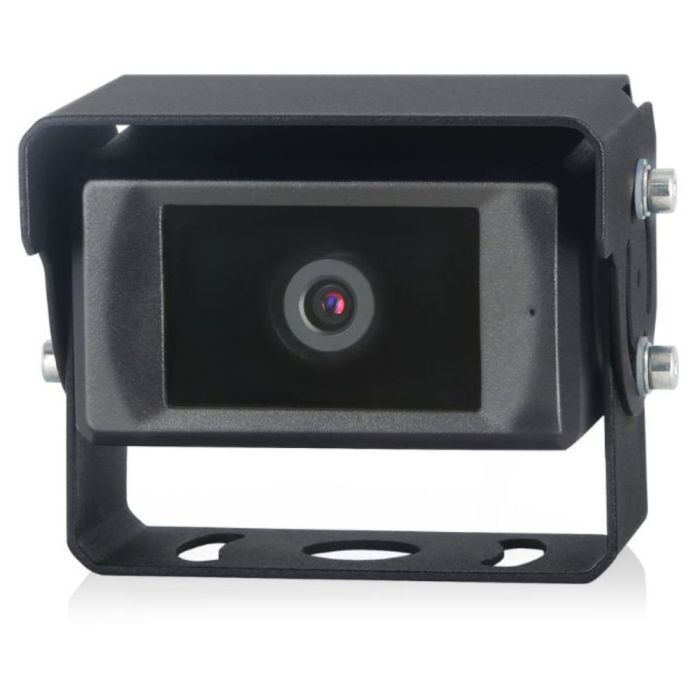

Camera-based systems utilize visual data from cameras to identify pedestrians. Sophisticated algorithms analyze images to detect shapes, movements, and other visual cues associated with pedestrians. A key benefit is their wide deployment in current automotive applications. However, their performance can be affected by factors like low-light conditions or occlusions. An example of camera-based systems includes those used in lane departure warning systems or adaptive cruise control, often incorporating pedestrian detection as an extra feature.
Radar-based systems leverage radar signals to detect pedestrians. Radar provides a robust alternative to camera-based systems because it is less sensitive to ambient light and can reliably detect pedestrians even in adverse weather conditions. The output data can be used to calculate the distance and velocity of detected pedestrians, which is essential for real-time responses. A notable example is the use of radar for automatic emergency braking systems, where pedestrian detection is crucial for safe braking maneuvers.

Key Components of a Typical System

A typical pedestrian detection system comprises several essential components working in concert.

Sensor Module: This module captures data from various sources, including cameras and radars. The choice of sensors depends on the specific application and performance requirements. For example, a system targeting urban environments might utilize multiple cameras for wider coverage.
Preprocessing Module: Raw sensor data often requires processing to enhance its quality. This might involve image enhancement techniques for camera data or signal filtering for radar data. This step ensures the data is suitable for subsequent analysis.
Feature Extraction Module: This crucial step identifies relevant characteristics or features from the processed data. For example, features extracted from camera images might include the shape and movement of objects. The extracted features are then used as input for the subsequent classification stage.
Classification Module: This module determines whether the extracted features correspond to a pedestrian. This stage employs sophisticated algorithms, often machine learning models trained on large datasets of pedestrian images and sensor data. The output of this module is a confidence score indicating the likelihood of the detected object being a pedestrian.
Output Module: The output module transmits the results of the pedestrian detection process to the vehicle’s control system. This includes information such as the pedestrian’s location, velocity, and the level of confidence in the detection. The control system can then trigger appropriate responses, such as braking or warning signals.

System Design Considerations

Pedestrian detection systems are crucial for a variety of applications, from autonomous vehicles to smart city infrastructure. Effective design hinges on understanding the multifaceted factors influencing performance. A robust system must balance accuracy, reliability, and computational efficiency to ensure safe and dependable operation.System design for pedestrian detection is a complex process, demanding careful consideration of numerous factors. The specific requirements of the application will heavily influence the chosen approach.

For example, a system intended for use in a high-speed autonomous vehicle will require a significantly higher level of accuracy and responsiveness compared to a system for a pedestrian crossing monitoring system.

Factors Influencing System Design

The design of a pedestrian detection system is shaped by several crucial factors. These include the specific environment in which the system will operate, the desired level of accuracy and reliability, the available computational resources, and the potential for integration with other systems. The performance of the system can also be significantly impacted by lighting conditions, weather, and the presence of occlusions.

Importance of Accuracy and Reliability

Accuracy and reliability are paramount in pedestrian detection systems. A system that frequently misidentifies pedestrians as non-pedestrians, or vice-versa, can lead to serious safety hazards. Consider a self-driving car that fails to detect a pedestrian crossing the road; the consequences could be catastrophic. Similarly, a system that consistently misclassifies non-pedestrians as pedestrians can lead to unnecessary interventions or delays.

These considerations underscore the critical importance of thorough testing and validation of the system under a wide range of real-world conditions.

Comparison of Detection Algorithms

Various algorithms are employed for pedestrian detection, each with its own strengths and weaknesses. Some commonly used methods include Haar cascades, support vector machines (SVMs), and deep learning models such as convolutional neural networks (CNNs). Haar cascades are relatively fast but may struggle with complex scenarios, whereas SVMs offer good accuracy but can be slower. Deep learning models, particularly CNNs, are known for their exceptional performance in complex environments, but require significant computational resources.

Challenges in Diverse Environments

Detecting pedestrians in diverse environments presents significant challenges. Variations in lighting conditions, weather patterns, and the presence of occlusions can drastically affect the performance of pedestrian detection systems. For instance, heavy rain or fog can significantly reduce the visibility of pedestrians, making detection more difficult. Similarly, pedestrians obscured by other objects, such as parked cars or large vehicles, can cause errors in detection.

Robust pedestrian detection systems must be designed to mitigate these challenges through appropriate preprocessing techniques and robust algorithms.

Data Collection and Processing

Collecting and preparing high-quality data is crucial for the effective training of pedestrian detection models. Robust datasets, meticulously preprocessed, are essential to ensure accurate and reliable predictions. This process involves careful consideration of data sources, preprocessing techniques, and data quality measures. The ultimate goal is to provide the model with a representative and well-structured dataset that facilitates the learning of pedestrian characteristics in diverse scenarios.

Data Collection Methods

The collection of training data for pedestrian detection models typically involves acquiring images or video footage containing pedestrians in various contexts. This often necessitates the use of specialized cameras or image acquisition systems, ensuring adequate resolution and frame rates for accurate pedestrian representation. Diverse scenarios, including different weather conditions, lighting variations, and pedestrian poses, should be captured to account for the variability encountered in real-world environments.

Data annotation, crucial for model training, involves marking the location and characteristics of pedestrians within each image or frame. This typically involves defining bounding boxes around the pedestrians and potentially adding attributes like pedestrian size, posture, and direction.

Preprocessing Steps

Preprocessing raw data is essential for improving model performance. Raw data often contains inconsistencies, noise, or irrelevant information that can negatively impact the training process. A systematic approach is required for preprocessing raw data. This involves several steps, including image resizing, normalization, and data augmentation.

Image Resizing: Images collected from various sources may vary in size. Consistent image dimensions are necessary for efficient model training. Resizing to a standard size ensures that all input images have the same dimensions, facilitating the model’s processing. Example: All images can be resized to 224×224 pixels.
Normalization: Normalizing pixel values ensures that the input data has a consistent range, typically between 0 and
1. Normalization helps prevent features with larger values from dominating the learning process, leading to a more balanced learning environment for the model. Example: Normalizing pixel values from a range of 0-255 to 0-1.
Data Augmentation: Data augmentation techniques can significantly enhance the training dataset’s size and diversity. Techniques like flipping, rotating, cropping, and adding noise to images generate new, synthetic data points that can improve the model’s ability to generalize to unseen data. Example: Flipping an image horizontally creates a new data point without changing the object’s inherent characteristics.

Importance of Data Quality

Data quality is paramount for achieving high accuracy in pedestrian detection systems. Inaccurate or incomplete annotations can lead to biased or erroneous models, resulting in poor performance in real-world scenarios. Data quality issues can manifest in various forms, such as inconsistencies in annotation, missing data points, or noisy images. Thorough data validation procedures are essential to ensure data quality.

Data Cleaning and Preparation

The process of cleaning and preparing data for model training involves meticulously reviewing and correcting any inconsistencies or errors within the annotated data. This crucial step includes identifying and handling missing values, outliers, and incorrect annotations. A systematic approach is essential to maintain data integrity.

Pedestrian detection systems are crucial for autonomous vehicles, but they’re also intertwined with chatbot development. For instance, a sophisticated system might leverage data from Chatbot developmen to refine its understanding of pedestrian behavior in various scenarios. This ultimately improves the accuracy and safety of these detection systems.

Identifying and Handling Missing Values: Missing data points can skew model training. Strategies for handling missing values include imputation or removal of data points with missing values. Imputation involves replacing missing values with estimated values based on existing data.
Identifying and Handling Outliers: Outliers can skew model training. Methods for handling outliers include identifying and removing or replacing them with more representative values.
Correcting Annotations: Inaccurate annotations can lead to poor model performance. Carefully reviewing and correcting annotation errors is crucial. This often involves human verification or using validation tools.

Model Training and Evaluation

Training pedestrian detection models involves a crucial step in the development of robust systems. The process requires meticulous data preparation, careful model selection, and rigorous evaluation to ensure accuracy and reliability in real-world scenarios. Different architectures and evaluation metrics are employed to fine-tune the model’s performance and optimize its response to various pedestrian poses, speeds, and environmental conditions.

Model Training Process Overview

The model training process for pedestrian detection typically involves feeding labeled data to a chosen model architecture. This data, consisting of images or videos with annotated bounding boxes around pedestrians, allows the model to learn the visual characteristics associated with pedestrians. The model learns to identify these characteristics by adjusting its internal parameters, a process called learning. This learning is iterative, with the model refining its predictions over multiple epochs, where an epoch represents one complete pass through the training dataset.

Optimization algorithms are employed to minimize the difference between the model’s predictions and the actual annotations, thereby improving accuracy. This iterative process continues until the model achieves satisfactory performance on a held-out validation dataset.

Evaluation Metrics

Several metrics are used to assess the performance of pedestrian detection models. Precision, recall, and F1-score are crucial metrics that measure the model’s ability to correctly identify pedestrians. Precision quantifies the proportion of correctly identified pedestrians among all identified objects, while recall measures the proportion of actual pedestrians correctly identified. The F1-score provides a balanced measure combining both precision and recall.

Pedestrian detection systems are crucial for autonomous vehicles. They need super-fast processing to react quickly, and 5G technology explained offers the high bandwidth and low latency needed for this kind of real-time data transfer. This allows the systems to accurately identify pedestrians in complex scenarios, ultimately improving safety on the roads.

Other metrics, such as Intersection over Union (IoU), measure the overlap between the predicted bounding box and the ground truth bounding box. A high IoU indicates a better match between the predicted and actual location of the pedestrian. Accuracy, while important, may not fully capture the nuances of detection performance, especially when dealing with small or partially visible pedestrians.

Model Architectures

Various Convolutional Neural Networks (CNNs) have demonstrated success in pedestrian detection. One prominent example is the Faster R-CNN architecture. It effectively combines region proposal networks (RPNs) with a classification and regression network to pinpoint pedestrian locations and classify them. YOLO (You Only Look Once) models, another popular choice, are known for their speed and efficiency in real-time applications.

Their architecture employs a single neural network to predict bounding boxes and class probabilities directly from the input image, which is advantageous for real-time performance. Other models, such as SSD (Single Shot Detector), excel at balance between speed and accuracy. The choice of architecture depends on the specific application requirements, considering factors like computational resources and desired response time.

Trade-offs Between Model Complexity and Performance

There is a crucial trade-off between model complexity and performance. More complex models, often with deeper architectures and more parameters, typically exhibit higher accuracy. However, increased complexity can lead to increased computational demands and longer training times. For real-time applications, simpler models with fewer parameters might be preferred, even if they yield slightly lower accuracy. The optimal balance between model complexity and performance must be carefully evaluated based on the specific application and the resources available.

For example, a security camera system requiring real-time detection may prioritize speed over higher accuracy, while a research application might prioritize higher accuracy at the expense of processing time.

Real-World Applications

Pedestrian detection systems are increasingly crucial in diverse sectors, from enhancing safety in autonomous vehicles to improving urban planning in smart cities. Their ability to identify and track pedestrians allows for proactive measures, preventing accidents and optimizing resource allocation. This section explores the practical applications of these systems across various domains.

Autonomous Vehicles

Pedestrian detection is a critical component of autonomous vehicle technology. Sophisticated algorithms analyze sensor data to identify pedestrians, assess their movement patterns, and predict their intentions. This allows the vehicle to react appropriately, ensuring safe navigation and preventing collisions. For example, in a scenario where a pedestrian suddenly steps into the path of an autonomous vehicle, accurate and rapid pedestrian detection allows the vehicle to brake or maneuver safely, minimizing the risk of an accident.

Smart City Infrastructure

Pedestrian detection systems play a vital role in smart city infrastructure. These systems can be integrated into traffic management systems, enabling real-time monitoring of pedestrian flow. This data can be used to optimize traffic light timings, improve pedestrian safety, and enhance overall urban mobility. For instance, detecting high pedestrian traffic volumes at specific intersections can trigger adjustments to traffic signals, leading to smoother and safer flow for everyone.

Other Applications

Pedestrian detection systems find application in various other sectors. These systems can be used in security applications, for example, to detect suspicious activities or potential threats. They also have applications in surveillance systems, helping to monitor and track individuals in public spaces. Furthermore, they contribute to improving the accessibility of public spaces by enabling better navigation for visually impaired individuals.

Table of Applications

Application Area	Use Cases	Benefits
Autonomous Vehicles	Collision avoidance, safe navigation, enhanced driver assistance	Reduced accident rates, improved safety for pedestrians and drivers, increased vehicle efficiency
Smart Cities	Traffic management, pedestrian safety improvements, optimized urban mobility	Reduced congestion, enhanced safety, improved resource allocation, improved quality of life
Security	Suspicious activity detection, threat assessment, crime prevention	Enhanced security, improved response times, reduced crime rates
Surveillance	Monitoring public spaces, tracking individuals, crowd management	Improved situational awareness, enhanced public safety, potential for improved security
Accessibility	Navigation assistance for visually impaired individuals, improved accessibility of public spaces	Increased independence for visually impaired, enhanced accessibility for all

Challenges and Limitations: Pedestrian Detection Systems

Pedestrian detection systems, while highly advanced, face numerous challenges in real-world deployment. Environmental factors, such as varying weather conditions and lighting, significantly impact the accuracy and reliability of these systems. Furthermore, the inherent complexity of human behavior and diverse pedestrian actions introduce limitations in the models’ ability to precisely predict and classify pedestrian movements. Addressing these challenges and limitations is crucial for the safe and effective implementation of pedestrian detection systems.

Environmental Challenges

Environmental conditions significantly affect the performance of pedestrian detection systems. Low-light conditions, such as at night or in heavily shaded areas, often result in decreased image quality, making it difficult for algorithms to accurately identify and segment pedestrians. Similarly, adverse weather, like rain or snow, can obscure visibility and lead to reflections or distortions in images, hindering the detection process.

These factors necessitate robust algorithms that can adapt to varying lighting and weather conditions.

Limitations of Current Systems

Current pedestrian detection systems exhibit limitations in handling complex scenarios. These limitations include: difficulty in accurately detecting pedestrians in crowded environments or when multiple pedestrians are occluding each other, challenges in distinguishing between pedestrians and other moving objects, and difficulties in identifying pedestrians with unusual clothing or in atypical poses. These issues underscore the need for ongoing research and development to enhance the robustness of these systems.

Examples of System Failures

Pedestrian detection systems can fail in various scenarios. One example involves pedestrians wearing dark clothing against a dark background, where the system might misinterpret the object as part of the background or fail to detect the pedestrian at all. Another scenario arises when pedestrians are obscured by other objects or pedestrians, causing the system to miss them entirely.

Furthermore, fast-moving pedestrians or those exhibiting unpredictable behavior might not be detected correctly. These examples highlight the importance of system robustness in diverse and dynamic environments.

Importance of Continuous Improvement

Continuous improvement in pedestrian detection technology is essential for ensuring the safety and reliability of these systems. The ongoing development of advanced algorithms and data sets can lead to more accurate detection and classification of pedestrians in challenging conditions. Research into machine learning models that are more resilient to environmental factors, such as low-light or rain, will also be vital for practical application.

Regular evaluation and testing in diverse environments are crucial to identifying and addressing potential system failures.

Future Trends and Advancements

Pedestrian detection systems are constantly evolving, driven by advancements in deep learning, sensor technology, and computational power. This dynamic field is poised for significant breakthroughs in accuracy, robustness, and real-world applicability. The future of these systems promises enhanced safety and efficiency in diverse environments.Emerging trends are pushing the boundaries of traditional pedestrian detection methods. These advancements are not merely incremental improvements but represent paradigm shifts in how we approach the challenge of accurately identifying and tracking pedestrians.

Emerging Trends in Pedestrian Detection Technology

The field is experiencing a surge in research focusing on more sophisticated and adaptable models. These include advancements in deep learning architectures, which can handle greater complexity and variability in pedestrian appearances and behaviours. Furthermore, there’s a growing emphasis on integrating multimodal data sources, such as video, LiDAR, and radar, for enhanced robustness and accuracy.

Potential of Deep Learning in Improving Pedestrian Detection

Deep learning models, particularly convolutional neural networks (CNNs) and recurrent neural networks (RNNs), are proving highly effective in pedestrian detection. These models can learn complex patterns and relationships in image data, enabling more accurate identification of pedestrians in various scenarios. The increasing availability of large, annotated datasets is further fueling the development of more sophisticated deep learning models.

Examples include the use of generative adversarial networks (GANs) for data augmentation and the development of novel loss functions to improve model robustness. The improvement in deep learning architectures, especially those addressing spatial and temporal aspects of pedestrian movement, will result in significant improvements in real-world applications.

New Research Directions in the Field

New research is exploring novel approaches to pedestrian detection. Researchers are investigating the use of attention mechanisms to focus on critical regions of images, improving the accuracy of pedestrian detection in complex scenes. Another direction is the development of robust pedestrian detection models for challenging conditions, such as low-light environments, adverse weather, or scenes with occlusions. Researchers are exploring methods for improving the robustness of pedestrian detection in dynamic environments, by considering the context and trajectory of surrounding objects.

This is particularly crucial in applications such as autonomous driving.

Impact of Advancements in Sensor Technology

Advancements in sensor technology are significantly impacting pedestrian detection systems. For instance, LiDAR sensors provide high-resolution 3D data, enabling accurate depth estimation and improved pedestrian tracking in complex environments. Radar sensors offer the potential for reliable detection in challenging weather conditions, offering a complementary approach to camera-based systems. The integration of multiple sensor types, each with its strengths, is creating more robust and reliable pedestrian detection systems.

The ability to detect pedestrians in all weather conditions, regardless of visibility, will allow for autonomous systems to function effectively in challenging conditions.

Examples of Advancements

Several research groups are working on enhancing pedestrian detection in challenging environments. One notable example involves the development of a multi-sensor fusion system for autonomous driving, which combines data from cameras, LiDAR, and radar sensors to create a more complete and accurate understanding of the surrounding environment. This fusion approach leads to improved detection rates, especially in complex scenarios with occlusions.

Another noteworthy advancement involves the use of deep learning models to improve the accuracy of pedestrian detection in low-light conditions, effectively addressing a significant limitation in current systems. These advances showcase the potential of innovative approaches to address the challenges in pedestrian detection.

Ethical Considerations

Pedestrian detection systems, while offering significant potential benefits, raise crucial ethical considerations. These systems, designed to improve safety, must be developed and deployed responsibly to avoid unintended negative consequences. A thorough understanding of potential biases and mitigation strategies is paramount for creating systems that are fair and equitable for all users.Ensuring fairness and avoiding discriminatory outcomes is essential.

Pedestrian detection systems can be vulnerable to biases present in the training data, leading to inaccurate or prejudiced outcomes. These issues must be proactively addressed during system development to prevent perpetuating existing societal biases.

Potential Biases in Pedestrian Detection Models

Training datasets often reflect existing societal biases, leading to models that may not perform equally well across diverse populations. For instance, if the dataset primarily features people of a specific age or gender, the model may perform poorly when encountering individuals outside of this representation. Furthermore, environmental factors, such as lighting conditions or clothing styles, can also introduce biases.

These biases manifest as disparities in detection accuracy or response times for different groups.

Mitigation Strategies for Biases

Addressing biases in pedestrian detection systems requires a multi-pronged approach. Data augmentation techniques can help to improve the representation of underrepresented groups in the training dataset. This involves creating synthetic data points or augmenting existing data to create more diverse samples. For example, using image transformations (rotation, scaling, mirroring) can enhance the diversity of the training data without compromising the original information.

Techniques such as adversarial training can also be employed to help the model generalize better to unseen data, reducing the likelihood of biased predictions.

Developing Fair and Unbiased Pedestrian Detection Systems

Fair and unbiased pedestrian detection systems necessitate careful consideration throughout the entire development lifecycle. Creating a diverse and representative training dataset is crucial, ensuring the model learns from a wide range of people and environmental conditions. This diversity should reflect the demographics of the area where the system will be deployed. Regular audits and evaluations are essential to identify and correct biases as they emerge.

Ongoing monitoring and analysis of system performance across different groups are critical for detecting any disparities in detection accuracy or response times. Robust evaluation protocols, employing metrics beyond simple accuracy, should be used to assess fairness and equity. The use of human-in-the-loop evaluations, involving expert review of system outputs, can help ensure that human judgment is incorporated into the system’s development and operation.

Finally, transparent documentation of the system’s design, training data, and evaluation methodology is crucial for understanding and addressing potential biases.

Technical Implementation Details

Implementing a pedestrian detection system requires careful consideration of various technical aspects. From choosing the appropriate sensors to designing robust software, each component plays a critical role in the system’s accuracy and reliability. This section delves into the specific technical implementations, providing a comprehensive overview of the involved processes and components.The success of a pedestrian detection system hinges on accurate and timely data acquisition, processing, and analysis.

This section examines the key components and technologies involved, offering a detailed look at how these factors contribute to the system’s overall performance.

Sensor Technology Comparison

A crucial aspect of pedestrian detection is the choice of sensor technology. Different sensors offer varying capabilities in terms of range, accuracy, and cost. The table below summarizes the characteristics of common sensor types.

Sensor Type	Range (approx.)	Accuracy (approx.)	Cost	Strengths	Weaknesses
Cameras (monochrome/color)	10-100+ meters	High (with proper calibration)	Moderate	Excellent visual information, robust for various lighting conditions	Susceptible to occlusion, weather, and complex backgrounds
LiDAR (Light Detection and Ranging)	10-100+ meters	High (with proper calibration)	High	Accurate 3D point cloud data, robust for adverse weather conditions	High cost, sensitive to environmental factors (e.g., fog)
Radar	10-100+ meters	Moderate	Moderate	Excellent in challenging weather conditions, penetrates light fog/rain	Less precise object classification than cameras, limited visual information
Microwave Radar	100+ meters	Moderate	Moderate	Long-range detection, robust in various environments	Lower resolution than other sensors, potentially less accurate in complex scenarios

Processing Steps Summary

Accurate pedestrian detection requires a series of processing steps. These steps transform raw sensor data into actionable information, enabling the system to identify and track pedestrians.

Step	Description
Data Acquisition	Raw data from sensors (e.g., camera images, LiDAR scans) is collected.
Preprocessing	Data is cleaned, noise reduced, and enhanced for better analysis (e.g., image filtering, point cloud filtering).
Feature Extraction	Relevant features (e.g., shape, size, movement) are identified from the processed data.
Object Detection	Algorithms identify potential pedestrian objects in the data.
Tracking	The identified objects are tracked over time to determine their movement.
Classification	Pedestrians are distinguished from other objects.
Output	System provides information about detected pedestrians (e.g., location, speed, direction).

Software Components

A pedestrian detection system requires a suite of software components to function effectively. These components work together to process data, perform calculations, and provide output.

Sensor Interface Module: This component handles the communication and data acquisition from various sensors, ensuring data is received and formatted correctly. Example: a module receiving camera feed, processing it, and sending the data for further processing.
Data Preprocessing Module: This module performs initial processing steps like noise reduction and data cleaning, improving the quality and reliability of the data for subsequent stages. Example: removing unwanted noise from a camera image to improve the clarity of the object detection process.
Object Detection Engine: This core component utilizes algorithms (e.g., deep learning models) to identify potential pedestrian objects in the processed data. Example: a convolutional neural network that identifies pedestrians in a video stream.
Tracking Module: This component tracks the detected pedestrians over time, generating trajectories and assessing their movement patterns. Example: estimating the speed and direction of a pedestrian based on successive image frames.
Classification Module: This component differentiates pedestrians from other objects based on specific features, ensuring accuracy. Example: a classifier distinguishing a pedestrian from a bicycle or a parked car.
Output Module: This module formats and delivers the detected pedestrian information to the system’s user interface. Example: displaying a bounding box around a detected pedestrian and its speed on a dashboard.

Hierarchical Structure, Pedestrian detection systems

A hierarchical structure organizes the components of a pedestrian detection system for better understanding and management.

System Level: This is the top level encompassing the entire system, outlining its purpose and overall functionality. For example, a pedestrian detection system for autonomous vehicles.
Sensor Level: This level details the individual sensors used, their capabilities, and their connection to the system. Example: camera specifications and their interfaces to the system.
Data Processing Level: This level covers the data preprocessing, feature extraction, object detection, and tracking components. Example: using a convolutional neural network (CNN) for object detection.
Output Level: This level Artikels the system’s output, including the format and presentation of detected pedestrian information. Example: displaying detected pedestrians on a map or providing their coordinates to the vehicle control system.

Final Review

Ford detection pedestrians pedestrian vision car autonomous system auto123 wants night adds fully insure running over carscoops trucks

In conclusion, pedestrian detection systems are a complex interplay of technology, data, and ethical considerations. While challenges remain, continuous advancements in sensor technology, algorithms, and deep learning promise improved accuracy and reliability in diverse settings. This overview has provided a comprehensive understanding of the subject, highlighting the importance of this technology for the future.

Query Resolution

What are the primary challenges in pedestrian detection?

Pedestrian detection faces challenges in diverse environments, such as varying weather conditions (rain, snow, low-light), occlusions (pedestrians hidden by other objects), and variations in pedestrian behavior and clothing. Ensuring robust performance across these conditions is a major hurdle.

How accurate are current pedestrian detection systems?

Accuracy varies depending on the specific system and environmental factors. State-of-the-art systems can achieve high accuracy in ideal conditions, but challenges persist in complex scenarios. Continuous improvement in algorithms and data sets is crucial for enhancing accuracy.

What role do ethical considerations play in pedestrian detection system design?

Ethical considerations are paramount. Bias in training data can lead to unfair or inaccurate detection outcomes, particularly for certain demographics. Developing unbiased and fair pedestrian detection systems is crucial for responsible deployment.

What are the different types of pedestrian detection systems?

Systems can be categorized by the sensing technology, such as camera-based, radar-based, and lidar-based systems. Each technology has its strengths and weaknesses regarding accuracy, cost, and environmental adaptability.
